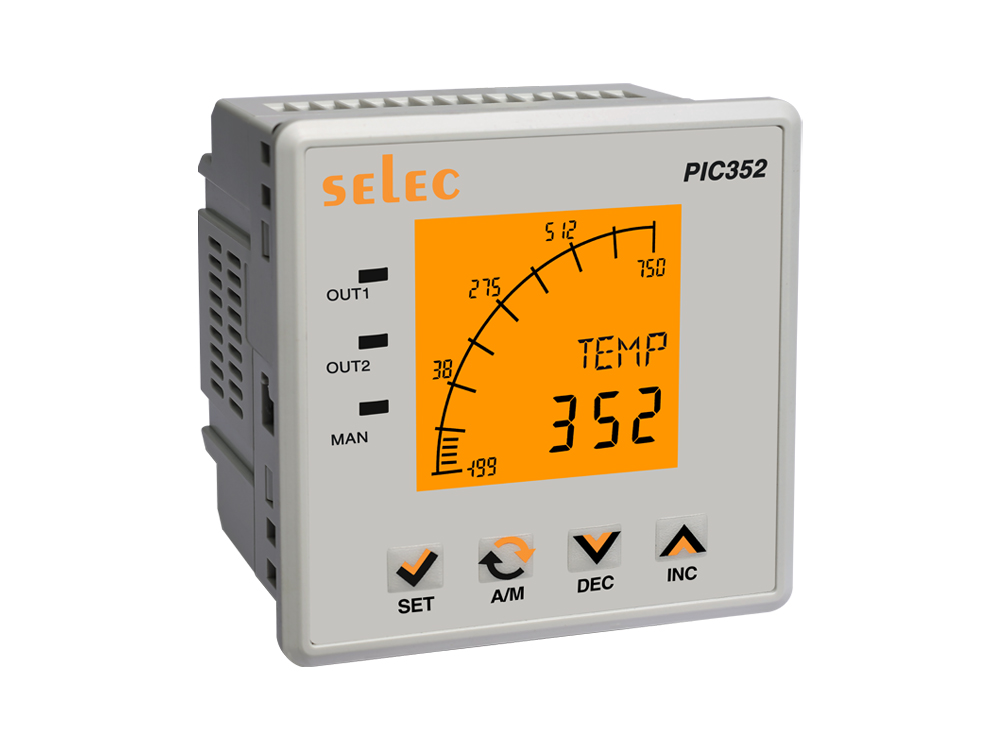

| Display Type | 4 Digits Dual display with Graphical Representation |
| Type of Input | Thermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100, PT1000, Signal Inputs: (DC) -5 to 90mV, 0 to 5/10V, 0/4 to 20mA (Programmable Scale Time) |
| Digital Input | 4 DI’s |
| Resolution | 24 bit resolution at Analog Input 1/0.1 for TC/RTD ; 1/0.1/0.01/0.001 for Analog Input |
| Accuracy | For TC Input: 0.1% of full scale at 25°C ; For R & S input: 0.25% of full scale at 25°C ; For RTD: 0.1% of full scale at 25°C ; For Current: 0.1% of full scale at 25°C ; For Voltage: 0.1% of full scale at 25°C |
| Communication | RS485 MODBUS RTU protocol |
| Alarm Modes | Alarm High, Alarm Low, Band, Serr |
| Sensor Supply | 24V DC, 30mA |
| Supply Voltage | 85 to 270V AC / DC |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
| Certification | CE, RoHS |
