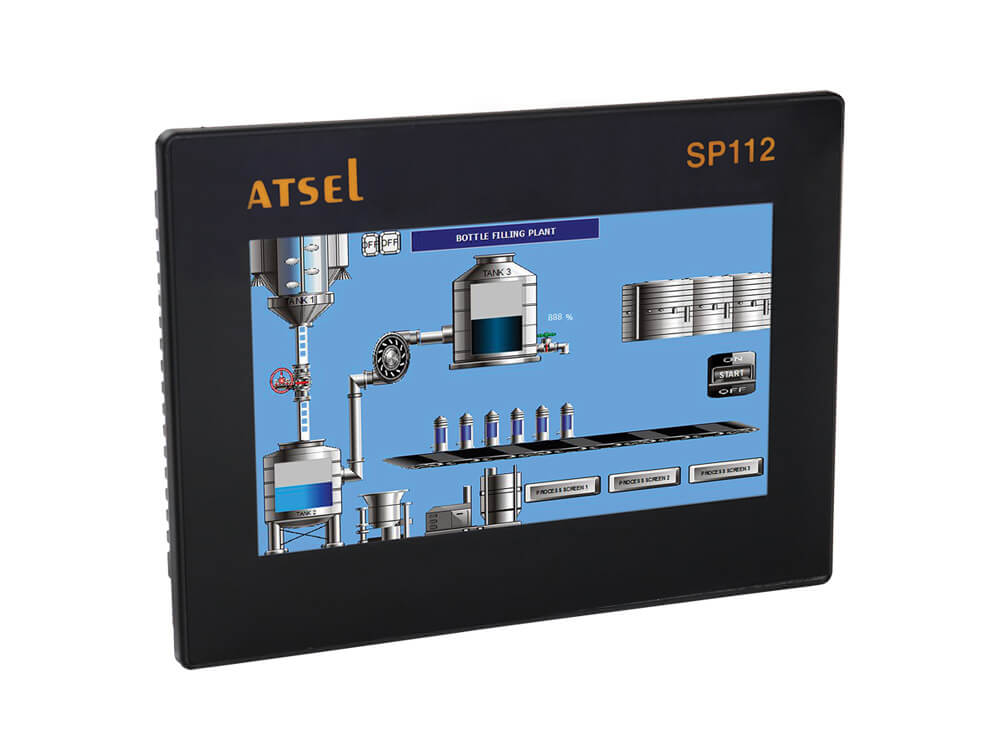

10 INCH TOUCH HMI

Product: SP112-GT100
  • 10" HMI with Resistive touch screen colour display with serial (RS485/RS232), ethernet communication and USB2.0 port
  • Features : Inbuilt ladder, macros and RTC functions
    • Third party Inbuilt Communication protocols
  • Functionalities : User management, alarm management, data logging capability (with internal 128MB and external Pendrive) and serial printing capability
  • Auxillary supply : 24VDC
Data Sheet
View Product Variants

Brief Specifications

Display Type 10" LCD Screen (65536 colors)
Resolution 1024 x 600 Pixels
User Memory 128MB Flash + 64MB DRAM
Supply Voltage 24 VDC
Data logging Inbuilt ( Upto 100000 logs )
Display Configuration 10" Resistive Touch Screen
Size 273 x 193mm
Communication Serial : COM1 (RS485), COM2 (RS232 /RS485)
Ethernet : ETH PORT(10M / 100M Self Adaptation)
USB : USB Port (USB 2:0)
Real Time Clock (RTC) Yes
Data Logging Yes
Recipes Yes
Alarms Yes
Password Yes
Ingress Protection IP65
Working Temperature 0°C to 50°C

Product Variants

Product Code Description Certification
SP112-GT100-ET-CE HMI - 10 Inch Resistive Touch Screen with Serial & Ethernet CE, RoHS
