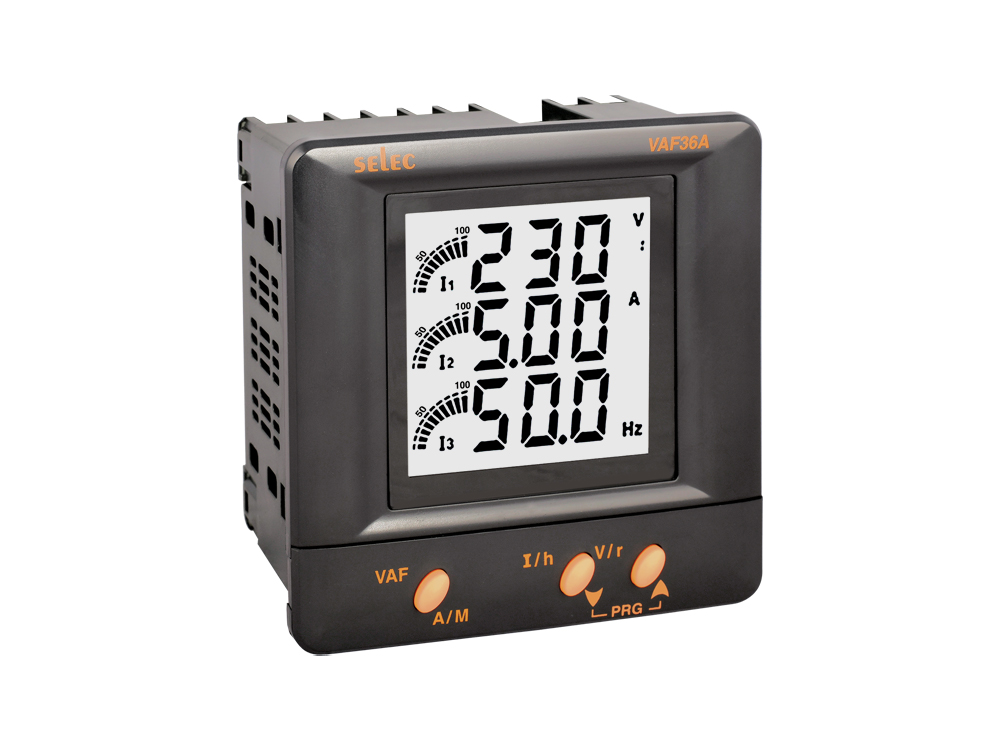

LCD VAF Meter

LCD VAF Meter, 3Ø, 96X96m

Product: VAF36
  • 1 Phase & 3 Phase systems
  • 11 to 300V AC (L-N), 19 to 519V AC (L-L) measurement
  • Accuracy of ± 0.5% of voltage, ±1% of current, ±0.1Hz of frequency, ±0.5% for RPM & ±1% for run hour
  • 3 rows 3 digits LCD display with back light
  • Bargraph for current representation
  • Panel mount
  • Supply voltage of 230V AC ±20%, 110V AC ±20%
Data Sheet
View Product Variants

Brief Specifications

Display Type LCD with Backlight and Analog Style Bargraph Indication
Display Configuration 3 Rows of 3 Digits
Electrical Connection 3Ø - 4W, 3Ø - 3W, 2Ø - 3W, 1Ø - 2W
CT Primary 5A to 10kA ( Programmable )
CT Secondary 5A Fixed
PT Primary 100V to 500kV (Programmable for Any Value)
PT Secondary 100 to 500V AC (L-L) (Programmable for Any Value)
Measuring Parameter Voltage (L-N/L-L) (Individual/Average), Current (I1,I2,I3) (Individual/Average), Frequency, RPM, Run Hour
Supply Voltage 240V AC ±20%, 110V AC ±20%
Size 96 x 96mm
Mounting Type Panel Mount
Certification CE, RoHS & UL

Product Variants

Product Code Supply Voltage Certification
VAF36A-230V-CE 230V AC ±20% (50/60Hz) CE, RoHS
VAF36A-110V-CU 110V AC ±20% (60Hz) CE, RoHS & UL
VAF36 230V AC ±20% (50/60Hz) --
